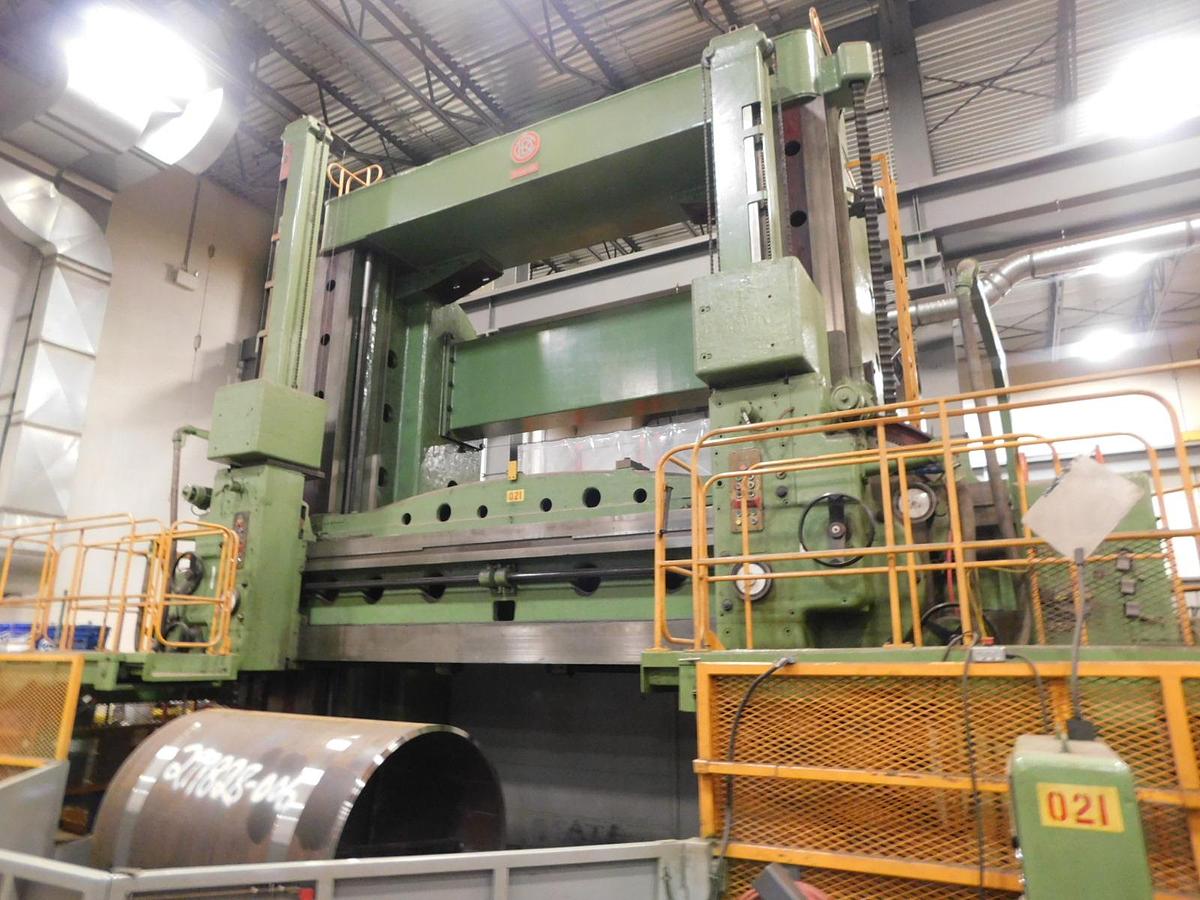

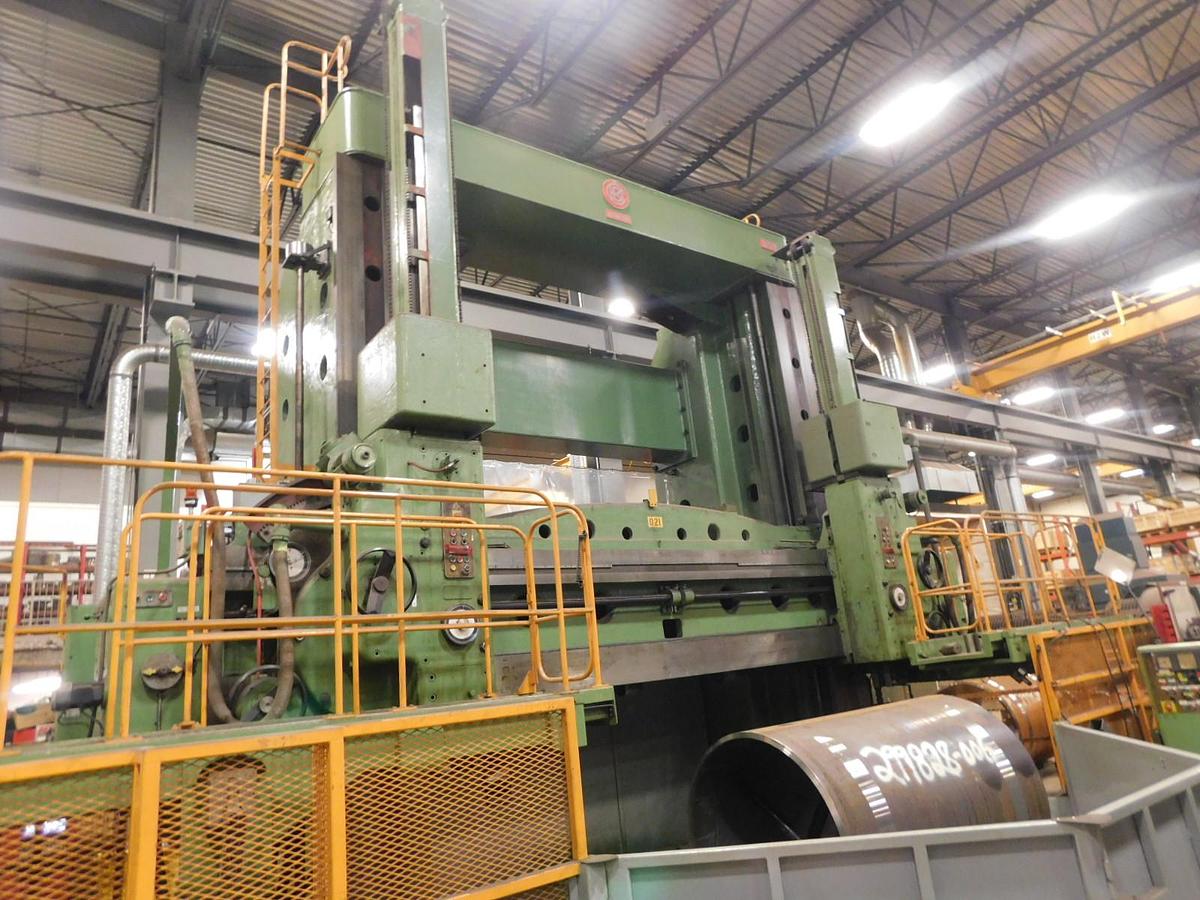

Skoda SK40A 148" Vertical Boring Mill

Skoda Model SK40A 148" Vertical Boring Mill

100 HP

Specs:

• Main motor: 100 hp
• Rapid motors: 3 hp
• Cross rail lift motor: 22 hp

Turning Capacity:

• 4-jaw chuck diameter: 148.5"
• Max diameter turned with side head: 157.5"
• Max swing: 169.3"
• Max workpiece weight: 139,000 lbs
• Side head max tool working height: 127.95"
• Left ram stroke: 100"
• Right ram stroke: 96"
• Cross rail travel: 135.8"
• RPM with load: 0.4-11 RPM

Machine Weight and Component Weights:

• Net weight of machine with standard components: 253,460 lbs

Basic Component Weights:

• Drive gearbox and rails: 6,500 lbs
• Bed and gearbox: 29,000 lbs
• Chuck: 27,000 lbs
• Columns (each): 33,000 lbs x 2
• Cross slide with feed boxes: 38,000 lbs
• Tool heads (each with counterweight): 29,000 lbs x 2
• Side head: 22,000 lbs
• Connecting beam: 14,000 lbs

Improvements:

• CSA certified electrical cabinet and control components
• Replacement of all rotating bearings upon startup and commissioning
• Fresh paint job
